HiPIMS power supplies to obtain high quality coatings.
Nano4Energy’s dedication to advancing plasma technology has driven significant enhancements in coating performance and manufacturing productivity. Through breakthroughs in HiPIMS power supply technology, we are now able to fine-tune every stage of the process to optimize key parameters. This expertise has been implemented in hundreds of industrial systems currently available on the market.
Our partnership with Viesca HiPIMS facilitates the production of cutting-edge and highly reliable industrial HiPIMS power supplies.
We collaborate closely with our customers to incorporate the latest thin-film coating technologies into everyday production. Our support encompasses the entire process—from concept and coating development to system design and full-scale implementation—enabling fully automated, high-volume manufacturing. The next generation of Bipolar HiPIMS technology is now available across all power supply units, delivering an average power range of 6 to 20 kW.
In recent years, we have witnessed the substantial impact of positive voltage reversal on coating performance. This has been demonstrated through applications such as low-friction DLC coatings, hard metal nitrides, and metal oxides. This new phase, featuring fully controllable positive voltage reversal in both duration and amplitude, enables us to further fine-tune the positive pulse effect for each specific application.

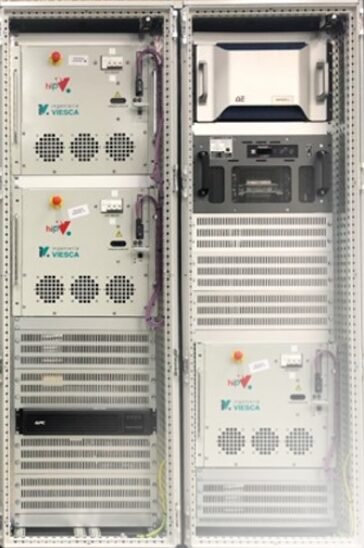

N4E HiPIMS specifications
Power Supply Features (PS):
- Integrated DC charging unit
- Average power options: 6 kW, 10 kW, and 20 kW
- Regulation modes: Voltage / Power / Current
- Cooling system: Water and air
- Nominal input voltage: 380 Vac to 480 Vac
- Arc control response time: <3 µs
- Maximum output voltage: -1200 V / +400 V
- Certification: CE Marked
Power Supply Features:
- Standard: USB Type B with standalone software included
- Optional: Profibus, Ethernet IP, EtherCAT
Interface & Communication:
- HiPIMS-PS
- DC-PS: Supports DC- (magnetron) or DC+ (anode) modes
- Synchronized bias options: HiPIMS Bias / DC-Bias
- Advanced capabilities: HiPIMS AC, dual magnetron compatibility
- HiPlus technology: Adjustable voltage reversal
Document & information download
Power Supply specifications:
Mecanical drawings:
N4E HiPIMS specifications

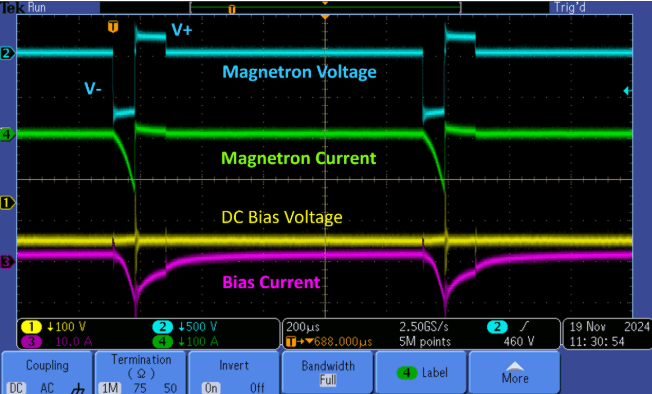

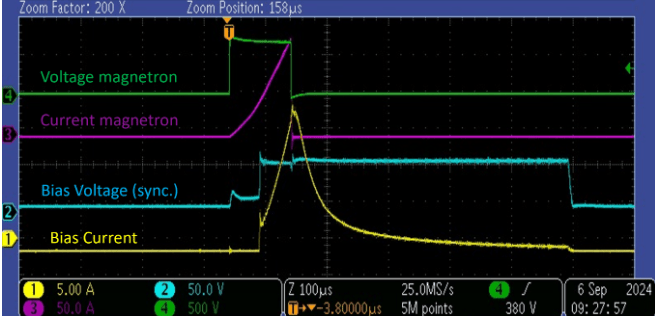

Bias HiPIMS operation (DC (-)) or sync
Bias Features
- DC- Mode: -40 V to -1200 V
- Continuous current (IDC): Up to 50 A
- Voltage: -40 V to -1200 V
- Delay time: 1 µs to 100 µs
HIPIMS operation : Bipolar HiPIMS
Bipolar HiPIMS Features:
- Positive Voltage (Vpositive): Up to +400 V
- Positive Power (Ppositive): Up to 1 kW
- Positive Peak Current (Ipeak, positive): Up to 80 A
- Delay Time (NEG-POS): 1 µs to 100 µs
- Duty Cycle: Up to 50%

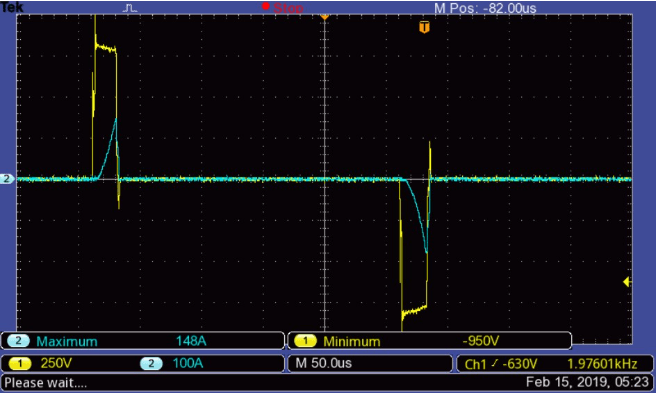

HIPIMS operation : Dual Bipolar HiPIMS
N4E HiPIMS Power Supply Rental Services
Looking to explore HiPIMS technology without committing to a full purchase? Our HiPIMS power supply rental program offers a flexible and cost-effective solution for your R&D projects, pilot production, or temporary manufacturing needs.
We provide access to cutting-edge HiPIMS power supplies, including models with advanced features like synchronized bias, adjustable voltage reversal (HiPlus), and bipolar capabilities.
Other services

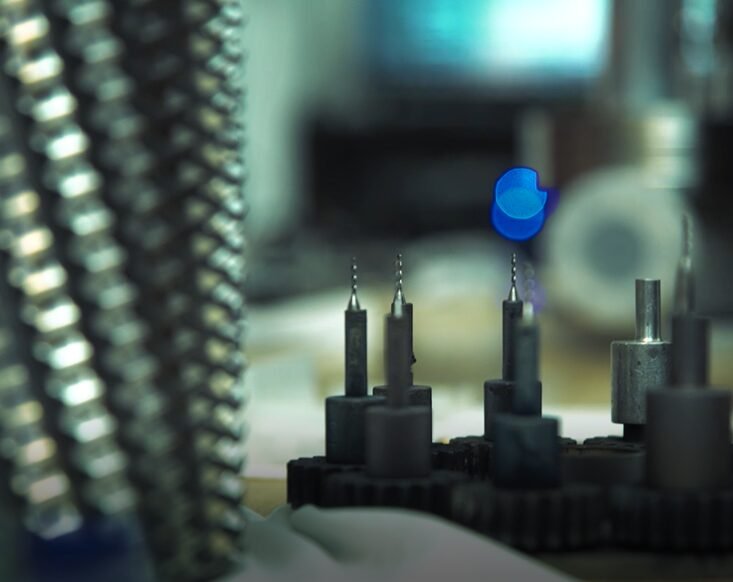

Coating solutions
